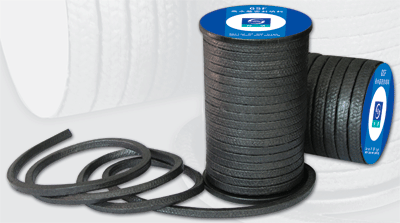

GSF系列高水基密封填料（盘根）
材质结构及特点：
GSF高水基密封填料是营口高新密封材料有限公司在国内高水基流体传动与控制系统密封材料的基础上，吸取国际最先进的编织工艺，浸渍特种润滑材料制成的一种适应多种工况条件的高强度、高弹性、低磨损的高级密封填料，广泛应用于电力、石油、化工、冶金、造纸等行业的高压、高速、重载工况条件下泵、阀等设备的密封。
流体介质：
水、蒸汽、腐蚀性气体、油类、海水、酸、碱、及各种固液混合物等。
主要技术指标：
抗拉强度（Mpa）：50
抗压强度（Mpa）：115
摩擦系数：0.20
极限压缩率（%）：86
回弹率（%）（变形50%）：25
密度（g/cm3）：1.3~1.5
PH值：2-13
适用温度：-60
℃~300
℃
|
Series of GSF high water base seal packing
Composition and Cearacteristics:
Based on the national high water base fluid drive and control system. Brought in the senior knitting teconology made of special soak lubricate medium. It can be used for the seal of pumps, valves, etc of the high strench, high elasticity, low wearing and tearing power, oil, chemistry, petro chemical, paper making.
Fluid medium:
Water, vapour, corrosive gases, oils, seawater, acid. Alkali and all sorts of solid and liguid mixture.
The main skill standard:
Pull resistance: (Mpa) 50
Pressure resistance: (Mpa) 115
Rub coefficient: 0.20
The limit compressure rate (%): 86
Back elastic rate: (%) (be out of shape 50%): 25
Density: (g/cm3): 1.3--1.5
PH: 2—13
Applicable temperature: -60℃~300℃
|
| |
 |
| |
截面尺寸
mmsq |
3 |
4 |
5 |
6 |
8 |
10 |
11 |
12 |
14 |
16 |
18 |
20 |
22 |
25 |
| m/kgabt. |
55 |
38 |
26 |
15 |
10 |
7.2 |
5.2 |
4.0 |
3.5 |
2.7 |
2.3 |
1.8 |
1.4 |
1.1 |
截面尺寸
inch sq |
1/8" |
5/32" |
3/16" |
1/4" |
5/16" |
3/8" |
7/16" |
1/2" |
9/16" |
5/8" |
11/16" |
3/4" |
7/8" |
1" |
ft/ib abt.
|
82 |
57 |
39 |
22 |
15 |
11 |
7.8 |
6.0 |
5.3 |
4.0 |
3.5 |
2.7 |
2.1 |
1.6 |
|
| |
|
|
|
| |
|
|
|
|
 |
