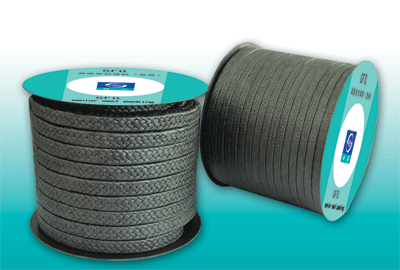

| GFO高级密封填料（盘根） |
材质结构及特点：
GFO填料系营口高新密封材料有限公司采用100%GFO® 纤维，吸取国际先进编织工艺，在密封机理及密封材料的配方、配比复合工艺等方面进行了创造性的研究和突破制成的一种与国外同类产品相媲美的高级密封填料，是复合流体介质高速旋转泵密封的最理想密封材料。
产品特性：
独特的耐高压性能。
优良的耐磨耗能力和自润滑能力。
广泛的化学介质适应性。
良好的耐温性能和较低的高温蠕变。
独特的热传导性能。
尤其适用于高速动态密封，放泄漏效果优异。
使用寿命更长从而节省了运行费用。
流体介质：
强酸、强碱、强腐蚀性介质、有机溶剂、各种油类、混合物、化合物等，广泛应用于石油、炼油、石油化工、化肥、电力、染料、造纸、造船、冶金、化纤、制药、食品及机械制造等行业的各类泵、阀、搅拌机、压缩机的填料密封。 |
| GFO senior seal packing |
Composition and Characteristics:
Produced by Yingkou high-new technical sealing material Co.,Ltd. which brought in the international weaving technology created and developed a kind of packing match the others in the word. This packing is made of the 100% GFO®? ibres, and is fit for fluid medium high speed moving pump’s seal.
Composition and characteristics: special high-temperature resisting, good wear proof and automatic lubricate ability, wide chemical medium suiltability, better heat resisting and lower temperature resisting and slowly changes, heat conduction, suittabe for high speed dynamic seal, effective leak proof. Besides, it lasts long and saves the expense of running.
Fluid Medium:
Strong acid, alkali, corrosive medium, organic, solvent, oils, mixture and chemicals etc. It’s widely used in pumps. Values . Mix machines and compressors’ seal of the oil. Oil refining. Petro chemistry. Ship building. Metallurgy. Chemical fibre. Pharmacy food and machine making.
|
|
 |
适应条件
Applicable conditions
|
离心动密封
Kreiselpumpen |
往复动密封
Kolbenpumpen |
阀门密封
Armaturen |
压力
Pressure |
20MPA |
20MPA |
30MPA |
温度
Temperature |
-240℃~+300℃ |
PH值
PH-Value
|
0~14 |
线速度m/s
LinearVelocity M/S
|
25 |
3 |
2 |
|
|
截面尺寸
mmsq |
3 |
4 |
5 |
6 |
8 |
10 |
11 |
12 |
14 |
16 |
18 |
20 |
22 |
25 |
| m/kgabt. |
50 |
40 |
27 |
20 |
11 |
7.3 |
5.4 |
4.2 |
3.6 |
2.7 |
2.2 |
1.9 |
1.4 |
1.1 |
截面尺寸
inch sq |
1/8" |
5/32" |
3/16" |
1/4" |
5/16" |
3/8" |
7/16" |
1/2" |
9/16" |
5/8" |
11/16" |
3/4" |
7/8" |
1" |
ft/ib abt.
|
75 |
60 |
41 |
30 |
16 |
11 |
8.0 |
6.2 |
5.4 |
4.0 |
3.3 |
2.9 |
2.1 |
1.6 |
|
|
|
|
| |
|
|
|
|
 |
